Fiber Hub – Fiber Flexibility Pedestals (CFFP)

The economical alternative to placing Fiber Distribution Cabinets at Local Convergence Points

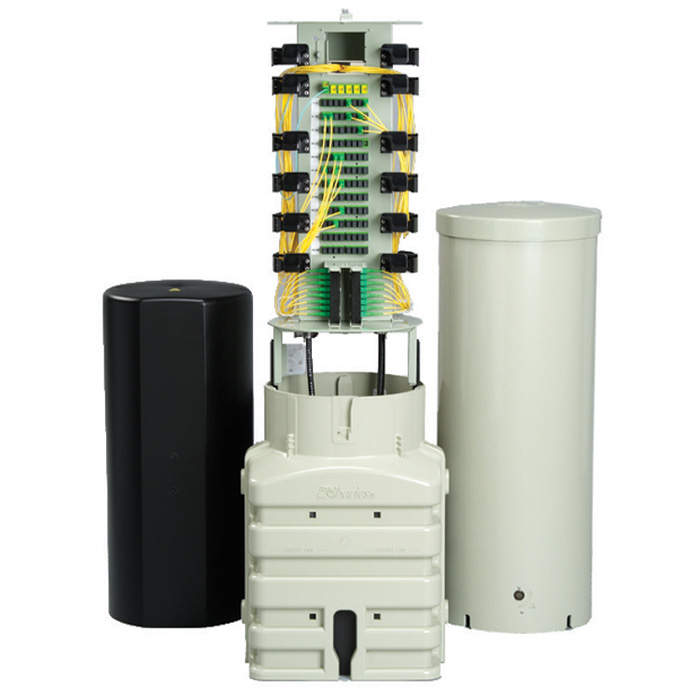

Charles Fiber Flexibility Pedestals (CFFP) offer a scalable, low cost alternative to placing traditional cabinet-type centralized split points (also known as fiber distribution hubs—FDH) in the outside plant. Unlike metallic cabinets, CFFP are floodproof and can be installed in almost any location. Their compact size compared to large cabinets makes them easier to install and ideally suited to small communities and neighborhoods. Right-of-ways are no longer a concern and the units can be economically placed directly in the ground without the need for an expensive pad. CFFP are available in four sizes with up to 72, 96, 144 and 288 fiber counts and in both stake-mount and vault-mount configurations.

A CFFP Patch & Splice option is available for small hub applications, eliminating the need for a splice closure and grade level box.

Features and Benefits

Flexibility

Fiber pass-throughs are available for secure circuits or for the flexibility to extend feed fibers to additional CFFP units for expanding neighborhoods

The CFFP is pre-stubbed with feed and distribution cables that are factory tested

One splitter module fits all CFFP sizes for ordering and stocking ease

Economic

Lower cost alternative to expensive pad; Small profile allows for lower freight and storage costs

Sizes are configurable with smaller fiber counts to economically optimize fiber hub size with neighborhood

Installation Mounting

Vault mount and stake mount options allows placement directly on splicing vault or more economical placement in the ground next to the vault

Organization is optimized with specially designed 3-way bend controls so that minimum bend requirements are met no matter how the fibers are wrapped around them

Technician Friendly Features

360º access for fiber organization allows freedom of movement for craftsperson so fiber housekeeping is not a chore

Protective locking cover for back of connectors gives protection while allowing easy access for cleaning without dangerously moving fiber bulkhead

Splitter module outputs are optimally designed for CFFP units. Minimizing leg lengths makes fiber housekeeping easier

Material Specification

Non-metallic PVC construction won’t rust, corrode, chip or fade

Environmental

Flexible placement is enabled by the proven environmental protection of the flood-proof Pedlock series of non-metallic pedestals. The CFFP can be placed in flood prone areas if needed where cabinets cannot be placed

Documents and Download

Documents

Industries

Product Details

Product Specifications

Characteristic

Description

Sizes

72, 96, 144 and 288 sizes configurable with smaller outputs (36 and 48 for example)

Placement configurations

Direct buried or vault mount pedestal base

Connector Type

SC/APC for inputs and outputs

Cable types

Ribbon or Loose Tube, Armored or All-Dielectric available

Cable lengths

100' standard

Input Fiber Capacity

6 fiber for 72 and 96 size, 12 fiber for 144 size, and 24 for 288 size

Maximum number of splitter modules

3 in 72 and 96 fiber size, 5 in 144 fiber size, and 9 in 288 size

Ordering Information

Common configurations are listed below. For complete ordering options, including cable types and optional patch and splice configurations, please consult the CFFP Datasheet or CONTACT CHARLES for ordering assistance.

Common CFFP Configurations

CFFP08E 072**

72 fiber distribution hub, 8 inch CFFP pedestal, direct buried base, ** specify cable type

CFFP08EV072**

72 fiber distribution hub, 8” CFFP pedestal, vault mount base with mounting hardware, ** specify cable type

CFFP10E 096**

96 fiber distribution hub, 10 inch CFFP pedestal, direct buried base, ** specify cable type

CFFP10EV096**

96 fiber distribution hub, 10” CFFP pedestal, vault mount base with mounting hardware, ** specify cable type

CFFP12E 144**

144 fiber distribution hub, 12 inch CFFP pedestal, direct buried base, ** specify cable type

CFFP12EV144**
