Fiber Aerial Solutions (CFAS)
Easily re-enterable and environmentally protected strand mount closure for cost-effective aerial fiber drops or splicing

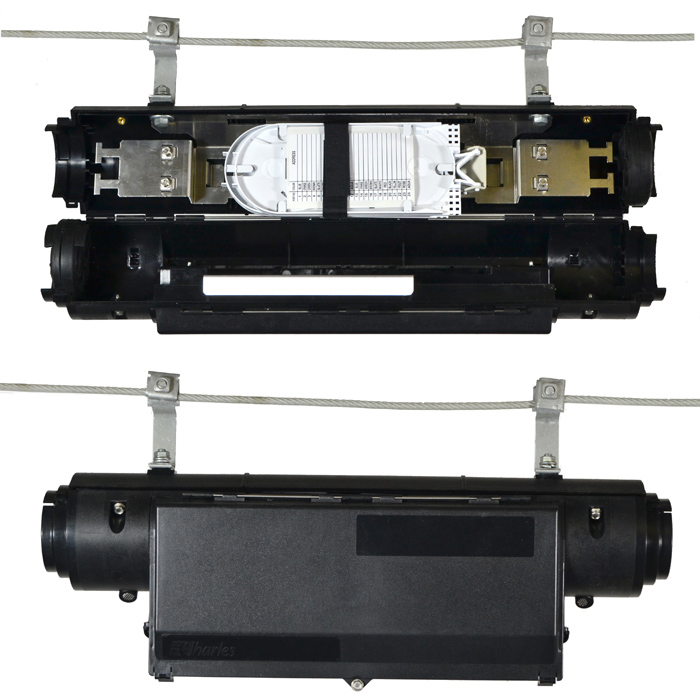

Charles Fiber Aerial Solutions (CFAS) provide simple, cost-effective closures for mid-span splice and/or fiber drop requirements. Efficient strand mount designs provide user-friendly access and utilize standard and/or small Charles Hinged Splice Trays. The closure has the ability to accommodate loop-through, branch and butt splicing. CFAS are ideally suited for outside plant, cell sites, or other environments where providers require fiber bandwidth for aerial optical distribution.
Features and Benefits
Flexibility
Can accommodate loop-through, branch and butt splicing;Utilizes standard and/or small Charles Hinged Splice Trays
(2) dual port grommets for cable entrance/exit on both sides
12 drop ports with plug-and-play adapters in Drop Closure configuration
(2) dual port grommets for cable entrance/exit on both sides
12 drop ports with plug-and-play adapters in Drop Closure configuration
Economic
Easily re-enterable strand mount closure for cost-effective aerial fiber drops or splicing
Installation Mounting
Robust hardware to accommodate cable mounting and routing
Technician Friendly Features
Separated splice and drop compartments
216-tool lock points (one for front access panel, two for secondary compartment entry)
216-tool lock points (one for front access panel, two for secondary compartment entry)
Material Specification
Sturdy lightweight construction
Environmental
Free-breathing
Documents and Download
Product Details
Ordering Information
Part Number
Description
CFAS-C12SA001
Fiber aerial splice closure drop configuration, 12 SC/APC adapters, two feed 4”x9” 24 fiber splice trays, includes aerial mounting brackets
CFAS-SPL01
Fiber aerial splice closure splice configuration, no adapter panel, one 4”x6” drop splice 24 fiber splice tray, includes aerial mounting brackets (use for spliced in drops)
CFAS-TERM12A1
Fiber aerial splice closure drop configuration, 12 SC/APC adapters, no splice trays, includes aerial mounting bracket.
