Series 3 Pedestals

Series 3 Fiber Pedestals

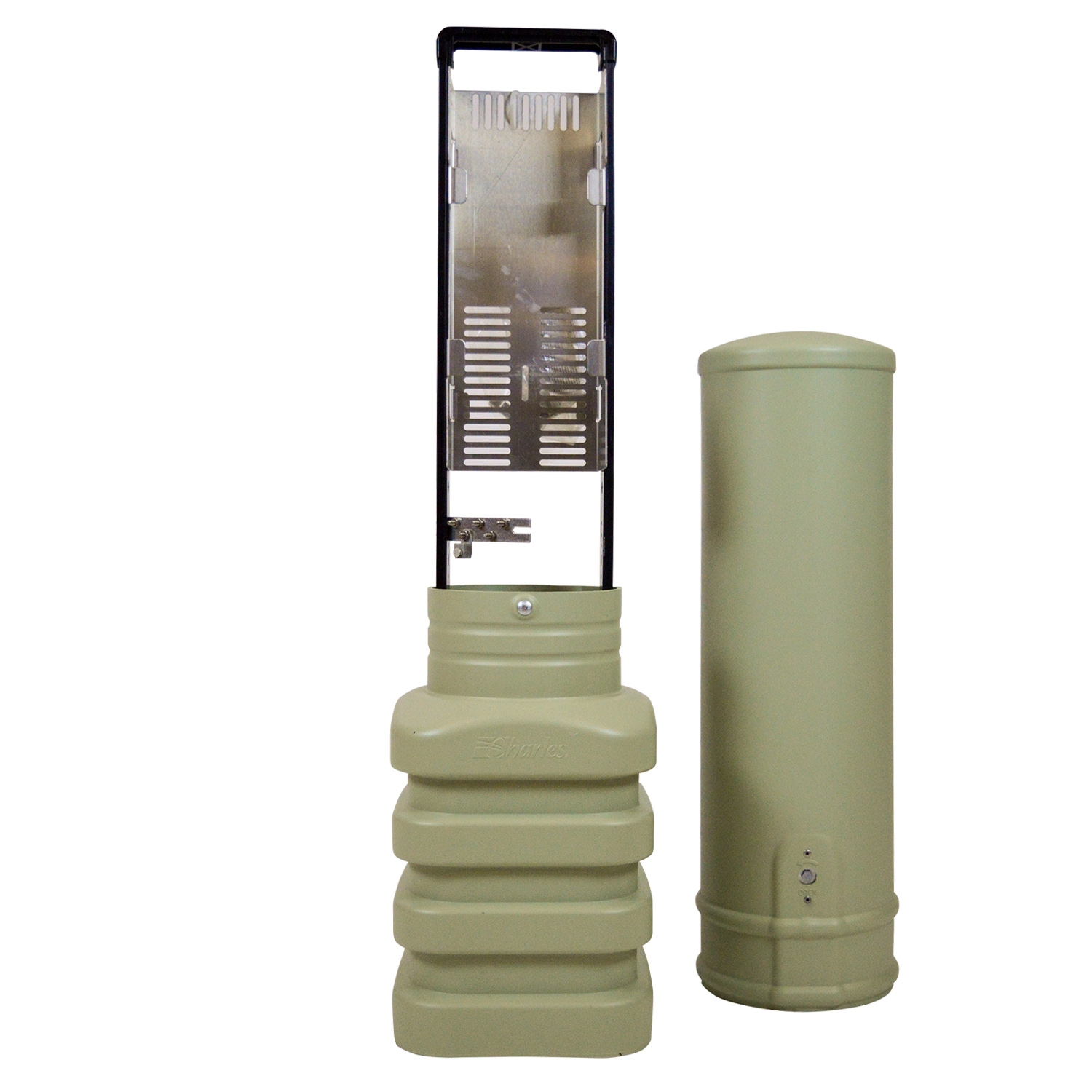

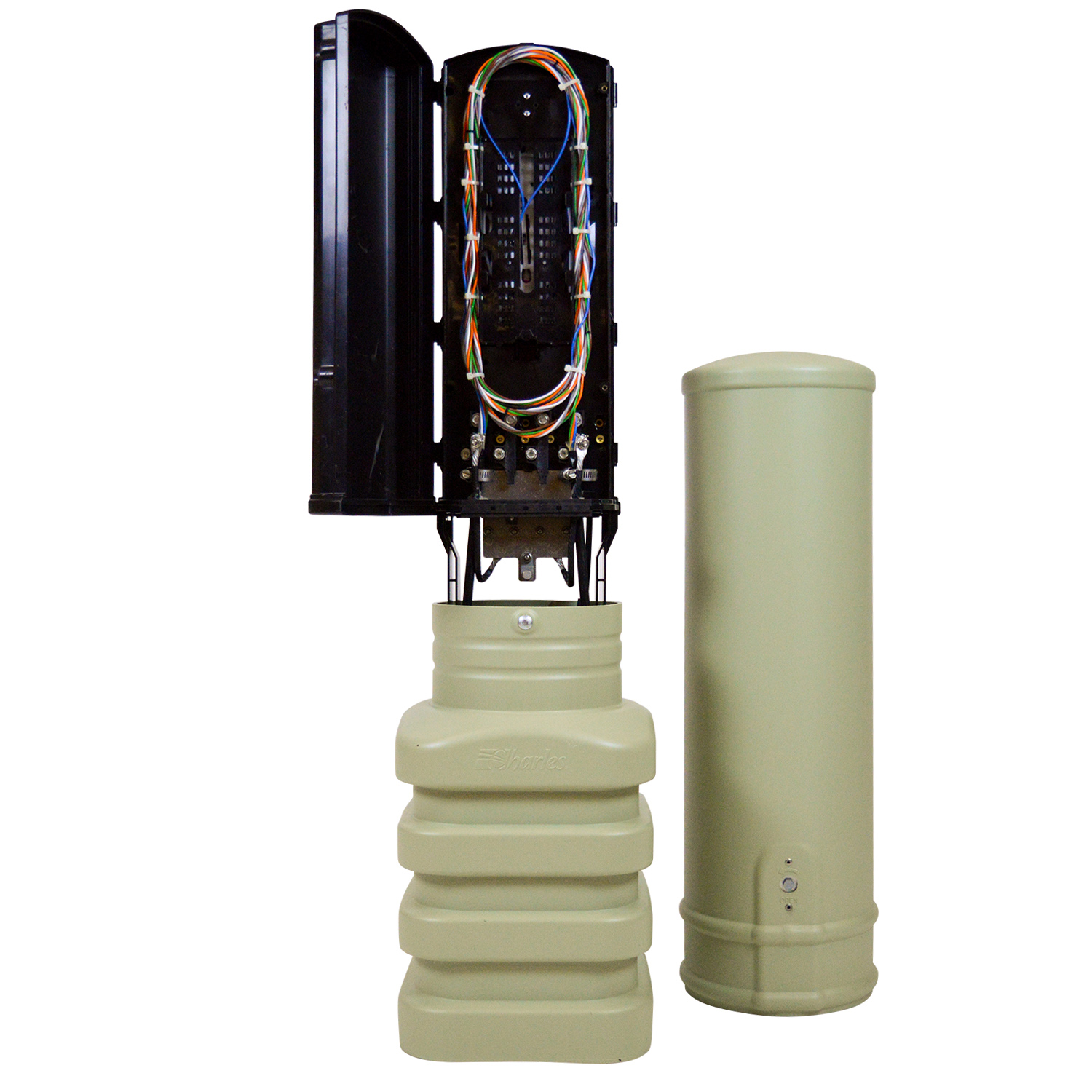

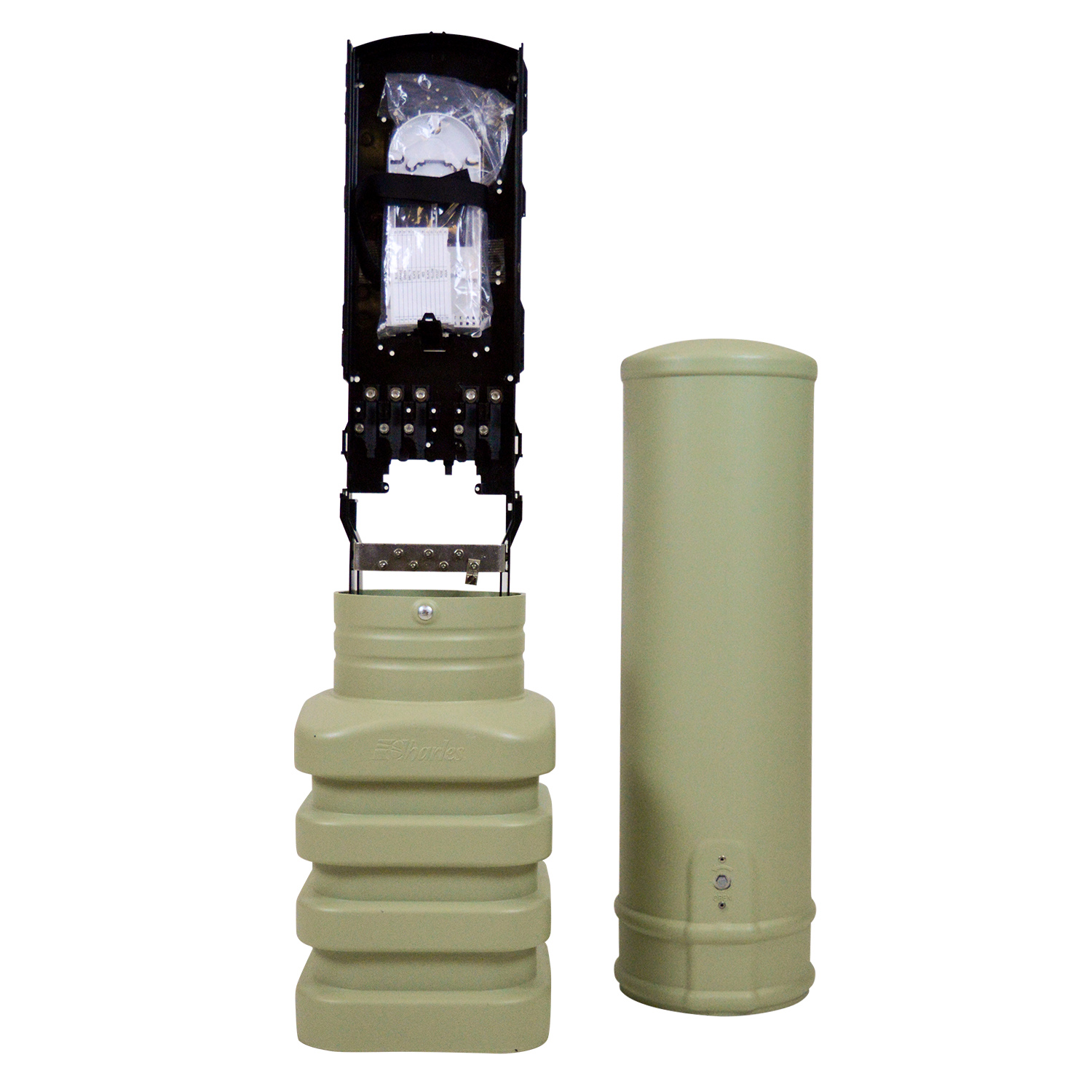

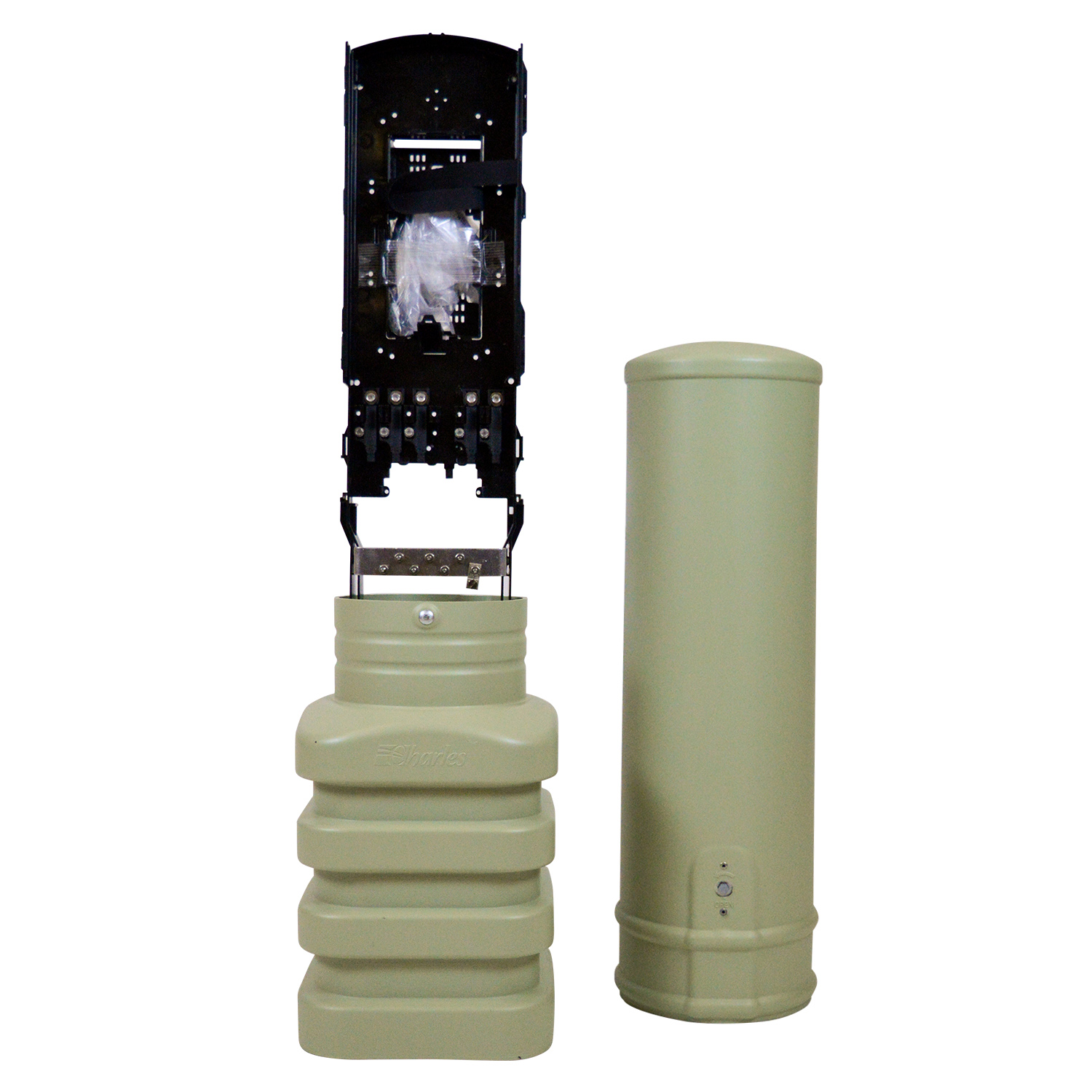

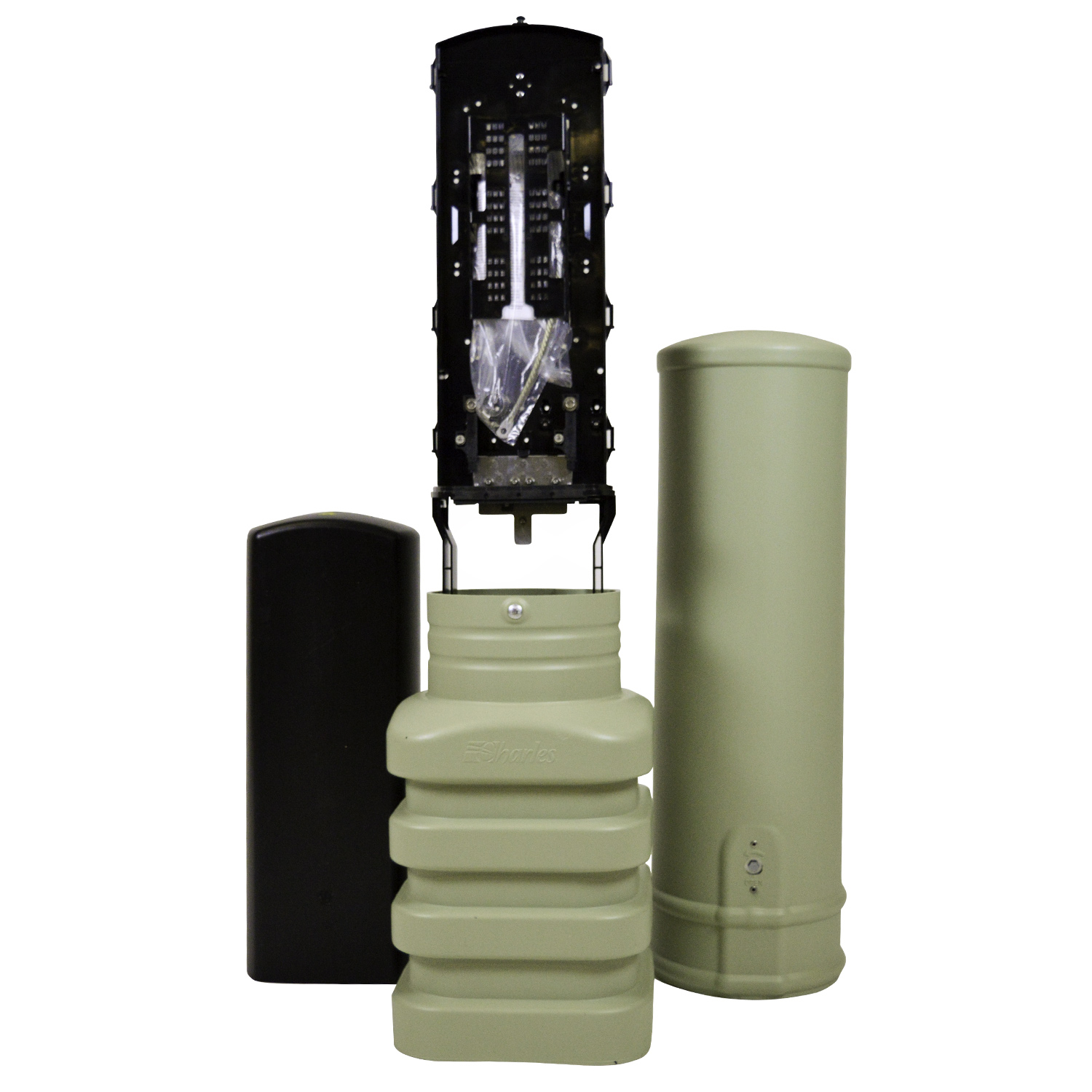

Series 3 pedestal housing is designed and developed for Charles’ most popular 8” and 10” Fiber Pedestals. These pedestals are available with BDO and CFDP backboards. The pedestal housings provide the necessary environmental protection with a similar size and profile as our current pedestals. Series 3 offers the same access and interface for technicians familiar with Charles Pedestals.

Series 3 pedestals are developed as a response to unprecedented industry demand. These pedestals offer the same interface to access, construct, and deliver service as our current popular existing pedestals. In addition, Series 3 pedestals are built of the same thermoplastic resin as our broadly utilized CMPH and Broadband Pedestals with over 20 years of field-proven performance.

Features & Benefits

Flexibility
Fiber splice bracket (G Bracket), used for greenfield deployment where new fiber optic cable or innerduct "looped" into the pedestal

Fiber organizer backboards accommodate all commonly used fiber splice trays with a 4”x9” footprint. 10” diameter and larger pedestals also accept 4”x12” or 6”x15” trays. Cable management guides for slack storage

Distribution cable side of fiber organizer includes cable storage compartment, cable management guides, ground wire posts, and strength member clamps

Optional ribbon fiber kit and universal mounting stake available
Economic
Low total cost of ownership
Installation Mounting
Bonding/grounding bar meets all requirements for proper bonding and grounding of service wires and cable sheaths

Dom attaches securely to the base using a self-locking 216-hex head bolt lock or can wrench
Technician Friendly Features
Solid, single-piece square base provides extra space to better manage the ingress and egress of cables, drops, conduits, and innerduct

The lift-off dome provides full 360◦ access to internal splicing area
Material Specification
Non-metallic construction is resistant to rust, corrosion, chipping, and fading

Built with already proven HDPE housing, except for use in the OSP space. Holds up to the most critical demands of Telcordia GR-13
Environmental
Protects internal components from floods and wind-blown dust and debris

Interior weather-tight enclosure provides mechanical and environmental protection of splice and cable storage areas

Lift-off outer dome with self-locking mechanism ensures secure attachment to the base and creates a patented "Bell-Jar Effect" that provides outstanding flood protection
