Modular Cabinets (CUBE Modular Series)

Modular Cabinets (CUBE Modular Series)

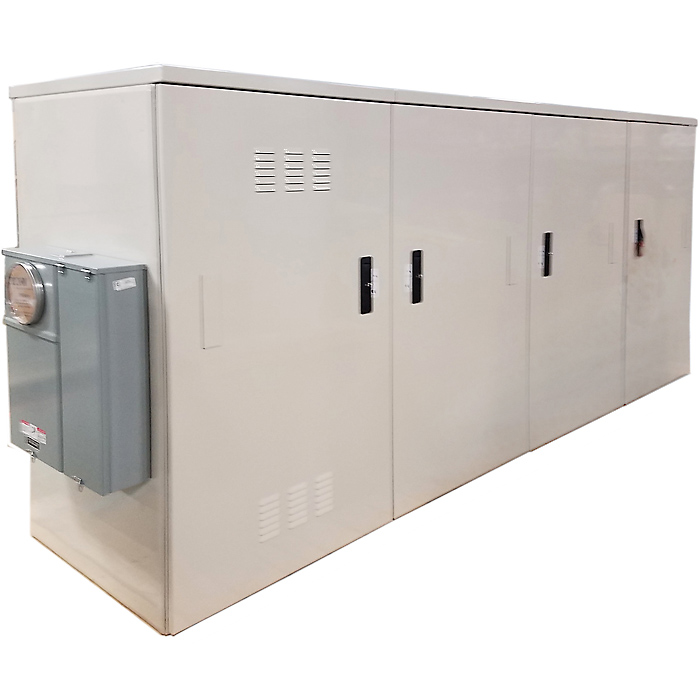

Charles Modular Series Cabinets are a family of pad mount enclosures that offer the ultimate in flexibility and scalability for outdoor enclosure deployments. Multiple standard bays can be mixed and matched into a multitude of different configurations to suit a specific application. The cabinet lineup can be built and shipped direct from the Charles factory in the desired configuration. Additional bays can be ordered separately at a later date to be added in the field to accommodate growth.

Standard bay types include relay rack bays to support power and active electronics, passive fiber management, and battery bays to support multiple strings of 12V Monoblock batteries. Options include different thermal management systems for bays needing cooling, internal or external AC power panels, integrated AC-DC power systems, fiber panels, and plinths. Thermal management systems are door mounted and can be added / changed out in the future as cooling needs change.

Features and Benefits

Flexibility
Scalable design can be factory configured to support between 1-4 bays

Additional bays can be added in the field when they are needed, preserving investment capital

Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs

Standard bay types include relay rack bays to support power and active electronics, passive fiber management, and battery bays to support multiple strings of 12V Monoblock batteries

Offers a wide range of configuration options providing maximum flexibility including optional AC power panels, integrated AC-DC power systems, fiber panels, and plinths
Economic
Provides an economical alternative to shelter and hut deployments for protecting a wide range of network equipment
Installation Mounting
Door mounted thermal management systems can be added / changed out in the future as cooling needs change

Modular cabinets can be mounted to a concrete pad or Charles CPAD composite mounting platform
Technician Friendly Features
Front and rear access doors allow technicians access to equipment storage areas and cable routing

Well organized cable management and routing makes for easy installation
Material Specification
Constructed of durable, welded aluminum
Environmental
Enclosures and thermal systems have a powder coated finish to withstand the elements and provide superior environmental protection

Videos

Product Videos

Product Details

Ordering Information

Charles CUBE MC Series (click link for ordering guide)

Overall Dimensions (In.)

H

W

D

Description

62

32

32

31RU Front/Back

74

32

36

38RU Front/Back

84

32

36

43RU Front/Back
