Optical Hub Cabinets (OHC) & Optical Broadband Cabinet (OBC)

High-Capacity Fiber Distribution Hub / Primary Flex Point for Passive Optical Networks (GPON/EPON)

Optical Hub Cabinets (OHC) provide fiber distribution to subscribers from a compact, environmentally protected outdoor terminal. The OHC series has been designed with flexibility in mind and support fusion, pre-terminated and field terminated feed and drop fibers. These PON terminals have space for multiple splitters for incremental growth. They may be pad, pole or wall mounted for placement flexibility and are well suited for multi-dwelling unit (MDU) distribution in centralized or distributed Optical Network Terminals (ONT).

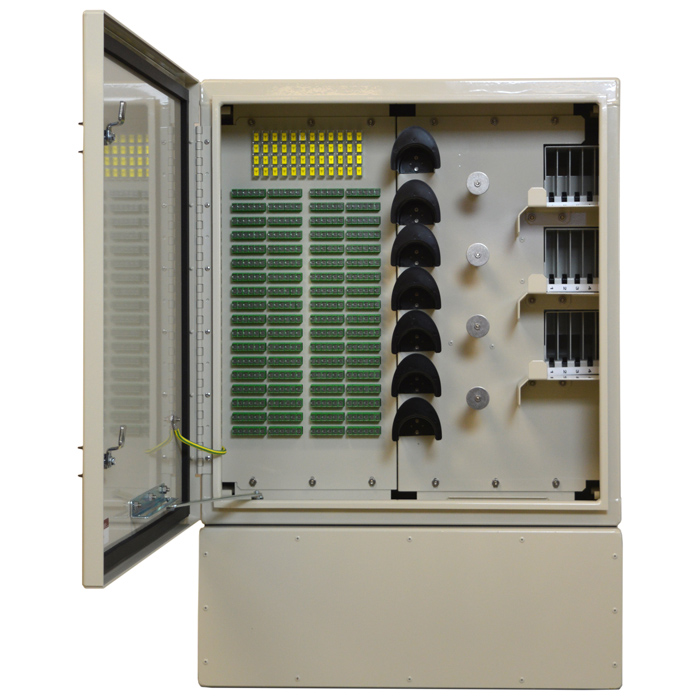

Everything about the interior of the OHC is designed with the technician in mind. Multiple cable entry locations are positioned at the bottom of the enclosure, allowing flexible placement of feed and distribution cables. Fiber bend radius controls and routing guides ensure cable management and proper slack storage. A splice tray basket secures hinged splice trays that are individually accessible without disturbing previously spliced trays. Charles Fiber Splitter Modules (CFSM) are available with optimized pigtail lengths.

OHC are constructed from powder-coated aluminum that is both durable and lightweight. The unit can be quickly installed by a single technician.

Features and Benefits

Flexibility
Supports pre-terminated and field terminated feed and drop fibers
Economic
Space for multiple splitters for incremental, scalable growth

Front and rear access doors are secured with low-profile, 216-tool quarter turn locks and padlock hasps for additional access control
Installation Mounting
Durable and lightweight enclosure can be quickly installed by a single technician

May be pad, pole or wall mounted
Technician Friendly Features
Multiple cable entry locations are positioned at the bottom of the enclosure, allowing flexible placement of feed and distribution cables

Fiber bend radius controls and routing guides ensure cable management and proper slack storage

A splice tray basket secures hinged splice trays that are individually accessible without disturbing previously spliced tray

Charles Fiber Splitter Modules (CFSM) are available with optimized pigtail lengths.
Material Specification
Constructed from powder-coated aluminum
Environmental
Well suited for centralized split in a Passive Optical Network (PON)

Product Details

Ordering Information

OHC are available in a variety of configurations. Please CONTACT CHARLES for for more information, including available options.
