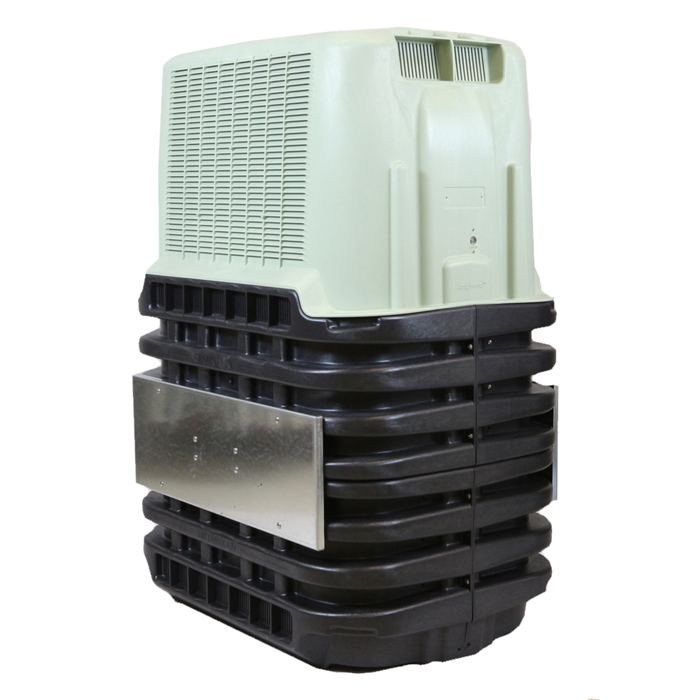

Z24 High Heat Node Pedestal Housings
Pedestal Housing for Next Generation CATV/Broadband Network Equipment with Fiber Splice Case Storage
Next generation CATV network upgrades, including Remote PHY (R-PHY), MAC-PHY, Node + 0, Node + N, etc., are placing increasing thermal and space demands on outside plant pedestal housings. New R-PHY optical nodes are being engineered to dissipate 160Watts of power; significantly greater than prior generations of pedestal housings were designed to accommodate. Pedestals that cannot accommodate 160W can result in network outages or shorter equipment lifespans due to over-heated equipment.
The Charles Industries’ Z24 pedestal housing was engineered specifically to meet the demands of next generation CATV network architectures and equipment. It is built to withstand the harsh elements typically found in outside plant deployments. Leveraging our expertise in outside plant enclosure engineering, thermal analysis, design and testing, the Z24 is capable of supporting R-PHY compliant equipment across all regions in the USA.
Features and Benefits
Extended depth base allows for expanded space to store fiber splice cases and for installations on sloped grades
Molded-in ground line for consistent installations
Self-latching dome locking system reduces unlocked pedestals and unwanted access
Corrosion resistant aluminum or stainless steel brackets and hardware for long service life
Dome color is light green, base color is black
Insect resistant openings prevent wasp & bee intrusion, protecting technicians accessing the enclosure
