Multi-Purpose Cabinets (CUBE MP Series Cabinets)

Multi-Purpose Cabinets (CUBE MP Series)

Multi-Purpose Cabinets (CUBE MP Series) are rugged, compact enclosures with steel mesh or wooden backboards designed to protect a wide assortment of remotely deployed equipment economically. These multi-purpose cabinets are versatile performers adaptable to many common remote terminal applications for copper, fiber, and coaxial. Common applications include housing small electronics, splice trays, smart meters, SCADA equipment, and security/monitoring hardware. MP Series cabinets are designed to meet NEMA 4X (sealed cabinets) or NEMA 3R (vented cabinets) standard.

Available options for MP Series cabinets include pole mount kits, fan kits, AC load center options and Universal Mounting Brackets, which provide flexible equipment mounting.

Features and Benefits

Flexibility
Offers a wide range of configuration options providing maximum flexibility including optional integrated power plants, protection, site monitoring, and fiber patch panels

Various accessories available including pole mount kits, fan kits, and external AC load center options
Economic
Range of enclosure sizes provides economical options for wide range of applications
Installation Mounting
Mounting plates included to support either wall of H-frame mounting

Accepts wood or steel mesh backboards (not included). Four (4) threaded studs provided for backboard mounting

Optional Universal Mounting Brackets support wide array of telecommunications, broadband cable and utility equipment
Technician Friendly Features
Front and rear access doors allow technicians access to equipment storage areas and cable routing
Material Specification
Constructed of durable, welded aluminum
Environmental
Enclosures have a white powder coated finish, continuous hinge door, weather-tight seals and lockable wing knob entry to ensure equipment mounted inside is protected from the elements an unauthorized entry
Industry Certifications
Enclosures available with options designed to meet both the NEMA 4X (sealed cabinets) and NEMA 3R (vented cabinets) standard

Product Details

Ordering Information

Charles CUBE MP Series (click link for ordering guide)

Overall Dimensions (In.)

H

W

D

Description

13

10

4

No backboard, 4 threaded posts for mounting wood or steel mesh backboard

18

18

9.25

Mesh backboard, NEMA 4X,2x6 ground bar, earth ground

18

18

9.25

Wood backboard, NEMA 4X,2x6 ground bar, earth ground

20

20

9.25

Mesh backboard, NEMA 4X, 150W Heater and Solar Shield, 2x6 ground bar, earth ground,

20

20

9.25

Mesh backboard, NEMA 4X,2x6 ground bar, earth ground

20

20

9.25

Mesh backboard, NEMA 4X,150W Heater and Solar Shield, 2x6 ground bar, earth ground

20

20

9.25

Mesh backboard, NEMA 3R, Mesh backboard, NEMA 3R

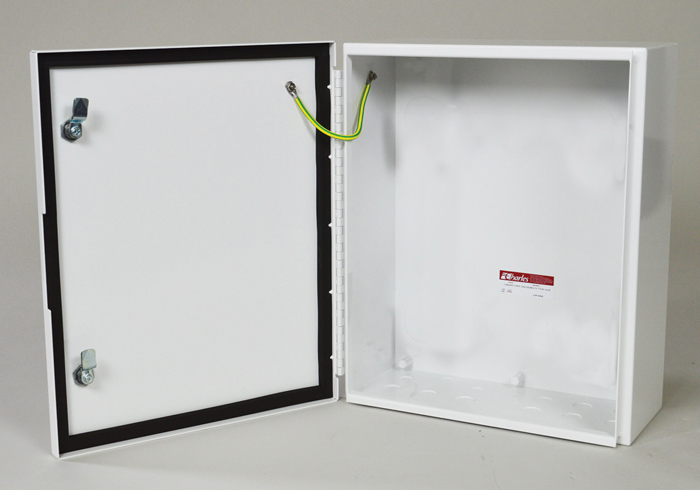

21

17

8

No backboard, 4 threaded posts for mounting wood or steel mesh backboard

24

24

12

Mesh backboard, NEMA 4X, 1.75/2.5" knockouts all sides, 2x6 ground bar, earth ground

24

24

8

Wooden backboard, NEMA 4X, Internal wall mount

36

16

8

Wooden backboard, NEMA 3R, 2x8 ground bar, earth ground, 1.75/2.5" knockouts bottom, 2 side knockouts and cover panels, solar shield

36

24

12

Wooden backboard, NEMA 3R, 2x8 ground bar, earth ground, 1.75/2.5" knockouts bottom, 2 side knockouts and cover panels, solar shield and fans

36

24

12

Wooden backboard, NEMA 3R, 2x8 ground bar, earth ground, 1.75/2.5" knockouts bottom, 2 side knockouts and cover panels, solar shield and fans

36

36

12

Wooden backboard, NEMA 4X, x8 ground bar, earth ground, 1.75/2.5" knockouts bottom, 2 side knockouts and cover panels, solar shield

36

36

12

Wooden backboard, NEMA 3R, x8 ground bar, earth ground, 1.75/2.5" knockouts bottom, 2 side knockouts and cover panels, solar shield and fans

40

16

10

No backboard, 2x8 ground bar, earth ground, (9) 3/4" & (1) 1.375" trade knockouts (sides and bottom) / Neoprene/ EPDM gasket on back wall and right wall knockouts, top panel solar shield and standoff-style sun shield on front door





Accessories

Part Number

Description

97-CABPMTKIT
Pole Mount Kit for MP 1818, MP2020, MP2424, and MP3216 Cabinets
97-CUBEFANKIT
Fan Kit, -48VDC 100CFM fan with shroud, external thermostat, screened vent or MP3624 and MP3636 Cabinets
97-2POSACLCKIT
Square D 2-position (4 tandem) external AC load center
97-002126-A
Pole Mount Kit for MP3624 and MP3636 Cabinets
