Site Support Cabinets (CUBE SS Series)

Site Support Cabinets (CUBE SS Series)

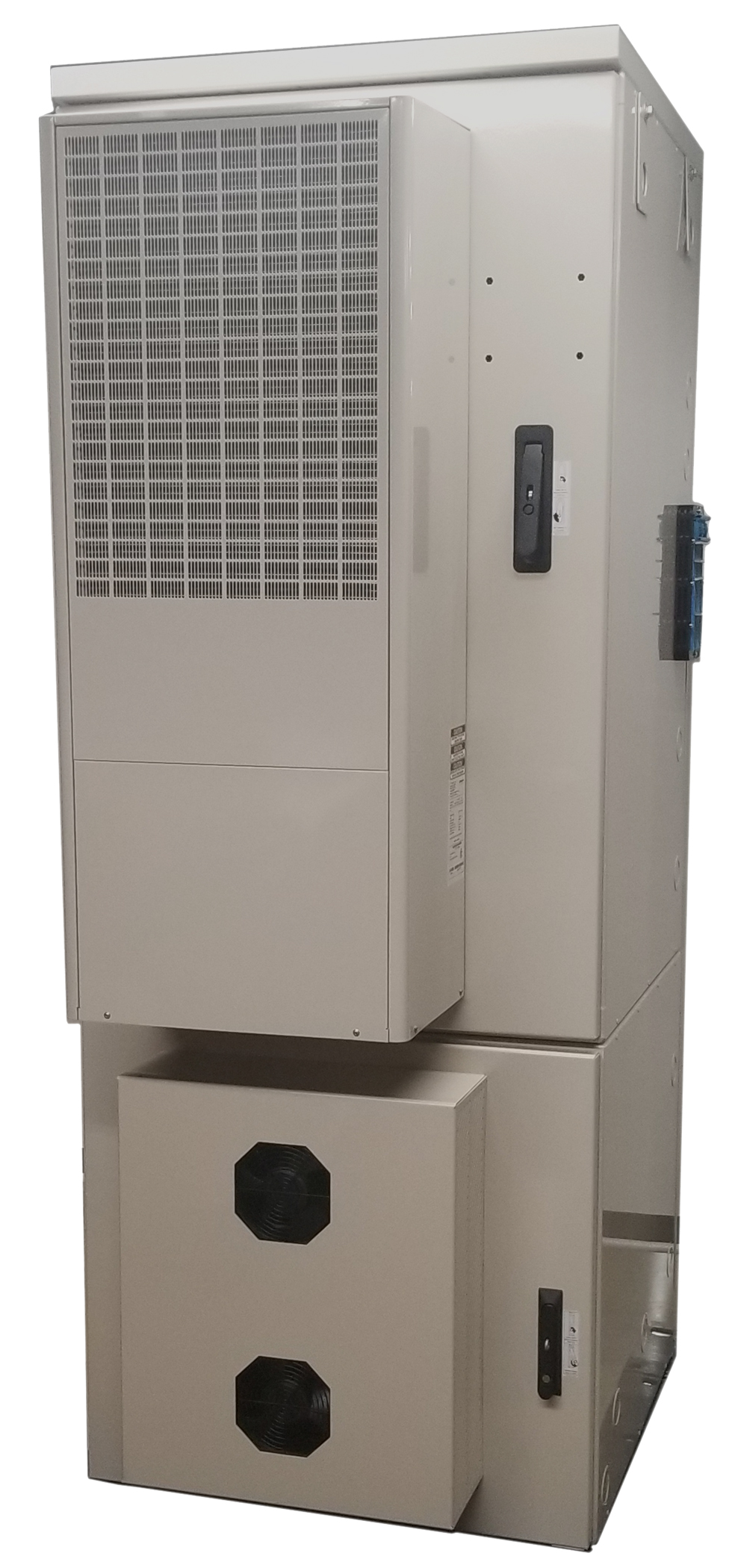

Site Support Cabinets (CUBE SS Series) are durable pad mount enclosures designed to provide robust protection of power equipment and battery technologies deployed in outdoor environments. One of the biggest challenges wireless service providers face is to provide reliable power in an efficient and environmentally friendly manner. Charles has a line of site support cabinets which allow providers to install new, highly efficient rectifiers and batteries in a compact and durable enclosure. With varied options for economical thermal management, Charles’ line of site support cabinets protects your network integrity with an environmentally friendly, energy efficient solution.

Large Site Support Cabinet solutions are part of Charles’ Macro Site solutions set, combining with CUBE pad mount (PM) and battery backup (BB) cabinets to form a complete site solution. Charles can also create custom designs that integrate specific power solutions. Contact Charles for details.

Features and Benefits

Flexibility
Sealed power or equipment compartment combined with separate battery compartment supporting 2-4 battery strings

Support for a variety of configuration options including VRLA or Ni-Cd batteries, various rectifier and power distribution options, and a range of thermal management options

Various accessories available including plinths, top hat cable entry compartments, and retractable overhangs
Economic
Specifically designed for Macro Cell Site and Centralized Radio Access Network (CRAN) applications, provides an economical alternative to shelter and hut deployments
Installation Mounting
Includes bolt-mounted lifting ears for placement by crane or other lifting equipment

Optional composite mounting platforms reduce cost and deployment time compared to traditional concrete pad installations
Technician Friendly Features
Front and rear access doors allow technicians access to equipment storage areas and cable routing

Well organized cable management and routing makes for easy installation
Material Specification
Constructed of a durable, welded aluminum outer enclosure and 10 gauge steel battery racks
Environmental
Enclosures and thermal systems have a powder coated finish to withstand the elements and provide superior environmental protection

Door Intrusion and High Temperature Alarms for maximum protection
Industry Certifications
CUBE BBU cabinets are Zone 4 Seismic rated and designed to meet NEMA 3R standards

Certified to stringent Telcordia GR-487 specifications for electronic enclosure cabinets and UL approved

Product Details

Ordering Information

Charles CUBE SS Series (click link for ordering guide)

Overall Dimensions (In.)

H

W

D

Description

Small-Sized Site Support Cabinets

27

28

20

7RU Power Compartment; Battery Compartment for 100Ah Battery String; 580W 48VDC Heat Exchanger; 8 Position Load Center

39

26

20

12RU Power Compartment; Battery Compartment for 100Ah Battery String; 580W 48VDC Heat Exchanger; 8 Position Load Center

Medium-Sized Site Support Cabinets

46

32

32

7RU Power Compartment with 23" Fixed Rail and 750W Heat Exchanger; 2 Battery Trays; 8 Position Load Center

Large-Sized Site Support Cabinets

74-90

32

32

7, 15, 23, 28, 31 and 35 RU Power Compartment with 23" Fixed Rail; Various Thermal Options; 2, 3 or 4 Battery Trays; 12, 16 or 20 Position Load Center
