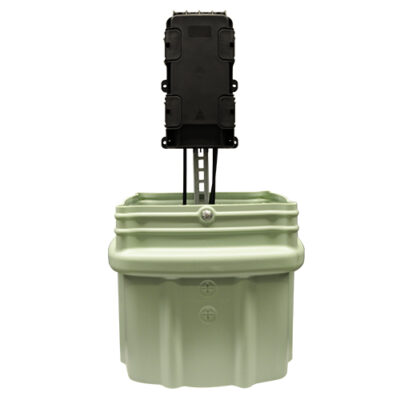

Fiber Sealed Drop Repair Closure FDRC

Fiber Distribution & Repair Closures (FDRC)

Amphenol Charles Industries (ACI) Fiber Distribution & Repair Closures (FDRC) are very compact units. They can be used as a repair closure or a small splice closure for a single fiber can accommodate up to 12 single fusion splices. There are two in-line ports that can accommodate cables or micro-duct up to 7.5mm in diameter as well as commonly used 8 x 4.5mm flat drop cable.

The units have six internal splice slots and can accommodate up to 12 single fusion splices. They feature grommet sealing and can be re-entered and re-sealed. The closures can be direct buried as well as placed in a hand-hole, mounted on a wall, or on an aerial strand.

Features and Benefits

Flexibility
Two sizes:

2-port inline: 7”x5”x 0.7”
4-port inline 9”x 7” x 1.7”
Economic
Cost effective compact design can be installed in smaller hand-holes or can even be direct buried
Installation Mounting
Direct buried, can be placed in a hand-hole, mounted on a wall, or on an aerial strand
Technician Friendly Features
Accommodates a range of cable sizes and is re-enterable
Material Specification
Glass-filled Polypropylene
Environmental
Sealed IP68 rated below grade use. And can wall or aerial mounted as well.
